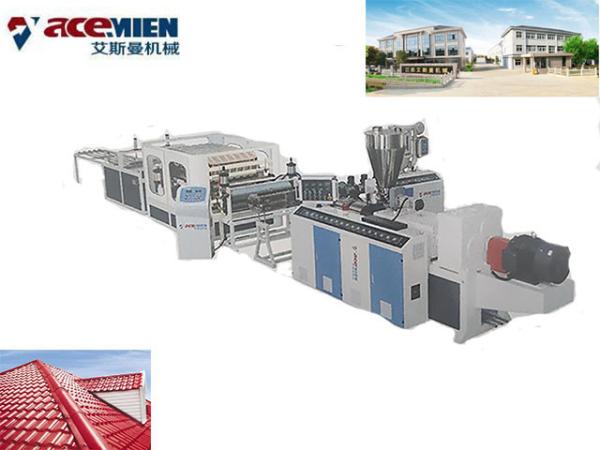

Multilayer Synthetic Resin Roof Tile Making Machine
This product adopts the advanced foreign technology, and designed
for corrosion resistance of plant and heavy acid area, it's a new
generation of permanent roofing material.Green environmental protection, also recyclable.Safety, insulation,
flame retardant, corrosion resistance, acid and alkali resistance,
5% acetic acid. 5% hydrochloric acid, no abnormal surface. Leave
the flame for five seconds and can self extinguish.This Multilayer Synthetic Resin Roof Tile Making Machine is a new and generation and environment friendly machinery. We are
a professional manufacturer for plastic roofing tile machinery for
more than 6 years! We have a 50% market share in Mainland China,and
meantime Our machines are exported to more than 20 countries in
Asia and Africa.
PVC glazed roof tile has a series of advantages: Weather
resistance, Corrosion resistant performance, excellent load
capacity, Shock resistant and low temperature resistant, Self clean
and so on.Professional analyzing and design by considering
production cost and roof tiles' performance.Surface material: weather ability resin, to keep the durability and
resistance to chemical corrosion of product. Underlying material:
white ductile material, to enhance the sense of space and
brightness of house.This product adopts a processing two layer co-extrusion and
resistance to chemical corrosion of products. The two different
material given the each features of product. Smooth face and get
together well. The new APVC anticorrosive composite wave tile
solves the problems of durability, corrosion resistance, small
rigid, the sense of space and aesthetic.
This line is mainly used to produce PVC glazed tile which width is 720mm, 880mm, 1040mm,thickness is 2-3mm. (Other size can be customized).PVC, ASA, PMMA compound roof tile
production line consists of conical twin screw extruder SJZ80/156, co-extruder, extruding tools, forming machine for main
tile and ridge tiles, haul-off, cutter and stacker. Supply formula
guide and staple raw material purchase.
Plastic roof tile Advantages:
1.Excellent load performance
2.Save cost for investor, production line using life for more than 20 years
3.Lightweight and easy for transportation
4.Fire resistance, not spontaneous combustion and insulation
5.Excellent waterproofing performance ,water resistance when heavy
rains and the rainy season
6.Anti corrosion: resistance to acid and alkali
7.Impact resistance and low temperature resistance8.Good sound and
heat insulation
9.Low thermal expansivity
10.Environmental friendly and energy conservation
11.Easy to install, packing and transport
12.Longlasting color more than 15 years
13.Green environment-friendly,can be recycled by plastic crusher
and pulverizer to be reused.
Work condition (provide by customer)
| Warehouse/Workshop | Dimension (M*M*M): 25(Length)×5(width) ×3.5 (Height)
Crane: Machine positioning |
| Temperature & Humidity | ≤40℃, ≤95% |
| Power supply | 3-phase, 380 V, 50 Hz(or customized) |
| Wire/cables: | Wires/cables from power supply to control cabinet of this
production line; |
| Cooling Water hose/pipe | Water supply to machines and pools |
| Lubrication oil: | Sinopec, Exxon mobile |
| Compressor | 7.5KW(0.6-0.8Mpa) |
Machine list
| No. | Machine | Qty. | Remark |
| 1 | Screw loader for SJZ 80/156 extruder | 1set | Glazed tile extrusion line
Ridge tile forming |
| 2 | SJZ 80/156 conical twin-screw extruder(PVC) | 1set |
| 3 | Vacuum loader and drying hopper | 1set |
| 4 | SJ50/30 single screw extruder(ASA) | 1set |
| 5 | Extrusion mould / distributor | 1set/1set |
| 6 | Embossing roller | 1set |
| 7 | Glazed-tile forming machine | 1set |
| 8 | Cutter | 1set |
| 9 | Stacker | 1set |
| 10 | Ridge tile Oven | 1set |
| 11 | Ridge tile Forming machine and mould | 4set |
| 12 | Screw loader for SRL-Z300/600 Mixer | 1set | Auxiliary equipment |
| 13 | SRL-Z300/600 Mixer unit | 1set |
| 14 | PC500 Crusher | 1set |
| 15 | MF550 Pulverizer | 1set |
| 16 | Ridge roof forming machine(Optional)
1. Flat sheet haul-off unit
2. Oven
3. Ridge tile forming unit
4. ridge tile mold (4sets)
|
Consignee take delivery of whole production line at factory.
After-Sales Policy
1 Technical documents
All the symbols on the equipments should be in English. Seller is
responsible to provide general layout plan, electric plan,
installation direction, and manual book in English to Buyer on
time.
2. Arrangement for inspection, installation and testing work
a. After all machines are delivered to customer's factory; Buyer is
responsible for all preparation work, e.g. electricity supply,
water supply, labors and cranes, etc.
b. ACEMIEN will prepare for visa application for their engineers,
who are responsible for guide of machine installation and testing
at the Buyer's factory.
c. The Buyer will buy the round-trip air ticket for Engineer if
visa application is approved. The buyer is also responsible to bear
expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD80 per day for each engineer.
d. Engineer will give free training lessons to labors in buyer's
factory.
e. If buyer doesn't request installation and commissioning by
Seller's engineer in 4 months since date of bill of lading, which
to be accounted all the machines has been successfully tested by
buyer.
3. Quantity and quality guarantee
a. Quantity/Quality Discrepancy to destination port during
transportation:
In case of quality/quantity discrepancy to destination port in
transportation, customer should file claim within 30 days after the
arrival of the goods at port of destination. Insurance company and
shipping company will be responsible for any discrepancy of the
goods caused by shipping company and other transportation
organization and/or post office.
b. Guarantee period and after-sales services: 12 months since date of bill of lading
During this guarantee period, ACEMIEN will provide spare parts
without any charge in case of quality discrepancy caused by us. If
the malfunctions are caused by your incorrect operations, ACEMIEN
will provide the buyer spare parts at cost price.
c. Long-term service:
ACEMIEN will charge the buyer cost price of spare parts beyond one
year and provide long-term technical guide.
