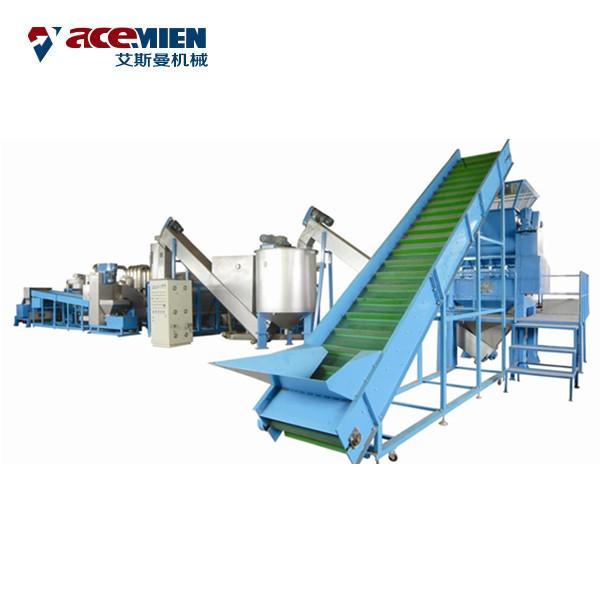

Waste PET Bottle Plastic Recycling Washing Line 300-2000kg/Hour High Efficiency

    Buy cheap Waste PET Bottle Plastic Recycling Washing Line 300-2000kg/Hour High Efficiency from wholesalers

    Buy cheap Waste PET Bottle Plastic Recycling Washing Line 300-2000kg/Hour High Efficiency from wholesalers
    • Buy cheap Waste PET Bottle Plastic Recycling Washing Line 300-2000kg/Hour High Efficiency from wholesalers
    • Buy cheap Waste PET Bottle Plastic Recycling Washing Line 300-2000kg/Hour High Efficiency from wholesalers

    Waste PET Bottle Plastic Recycling Washing Line 300-2000kg/Hour High Efficiency

    Ask Lasest Price
    Brand Name : Acemien
    Model Number : SJZ80/156
    Certification : CE
    Price : negotiation
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 200sets/year
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Waste PET Bottle Plastic Recycling Washing Line 300-2000kg/Hour High Efficiency

    Plastic Pet Bottle recycling machine plastic recycling plant washing line pet bottle production line


    Work flow of PET bottle plastic recycling machine


    1 Label remover

    Remove the label from bottles

    2 Metal detector

    This equipment is optional

    3 Crusher

    Crush with water, and this machine can cut the PET bottle into tiny flakes.

    4 Hot washer

    Hot washer is the most important step of the recycling line, which can remove the contamination such as grease,oil, glue etc.

    5 Screw feeder

    Screw feeder is mainly used for conveying the material.

    7 High speed Friction washer

    High speed friction washer is a highly efficient machine for cleaning PET flakes.

    8 Washing tank

    Washing tank separates materials based on the different density.

    9 Dewatering machine

    The first stage of drying process, dewatering machine can lower the PET flake's moisture to roughly 20%.

    10 Pipeline drying system

    Pipeline drying uses hot air to further dry the flakes which can reduce moisture level to below 1%.

    11 silo A large storage tank for clean,dry PET flakes.


    Basic specification of plastic pet bottle recycling machine/plastic recycling plant/pet bottle washing line


    Product capacity300kg/h500kg/h1000kg/h1500kg/h
    Workshop(L*W*H)40m*7.5m*6m42m*10m*6m70m*12m*6m75m*15m*6m
    Needed worker3-4 persons5-6persons7-8persons10-12persons

    Water supply

    (recycle use)

    2-3ton/h3-5ton/h7-10ton/h10-15ton/h

    Final product

    Moisture: max 3%

    Bulk density: 0.3G/CM3

    Particle size: 10-18mm

    Metal content: max.20ppm

    Floatable contamination: less than 200ppm

    Total impurity: 100-320ppm


    common configuration of pet bottle plastic recycling machine/plastic washing machine/waste plastic bottle recycling plant


    No.Equipment NameQuantityComments
    1Belt conveyor1 set
    2Bag opener1 setOptional
    3Belt conveyor1 set
    4Trommel1 setOptional
    5Belt conveyor1 set
    6Manual sorting conveyor1 setOptional
    7Belt conveyor1 set
    8Crusher1-2 sets
    9Screw conveyor1 set
    10Washing tank1 set
    11Screw conveyor1 set
    12Cooking boiler or Horizontal Hot washer1-2 sets
    13Screw conveyor1 set
    14High-speed washer1 set
    15Washing tank1 set
    16Screw conveyor1 set
    17Horizontal Dewatering Machine1 set
    18Cyclone separator1 set
    19Drying system1 set
    20Label separator1-2 setsWe can equipped with two label separators in the whole line, one at the beginning, another at the end
    21Final product silo1 set
    22Control System1 set
