Transparent Roof Tile Forming Machine PVC PP PET Customized Voltage 200 Kw

    Buy cheap Transparent Roof Tile Forming Machine PVC PP PET Customized Voltage 200 Kw from wholesalers

    Buy cheap Transparent Roof Tile Forming Machine PVC PP PET Customized Voltage 200 Kw from wholesalers
    • Buy cheap Transparent Roof Tile Forming Machine PVC PP PET Customized Voltage 200 Kw from wholesalers
    • Buy cheap Transparent Roof Tile Forming Machine PVC PP PET Customized Voltage 200 Kw from wholesalers
    • Buy cheap Transparent Roof Tile Forming Machine PVC PP PET Customized Voltage 200 Kw from wholesalers

    Transparent Roof Tile Forming Machine PVC PP PET Customized Voltage 200 Kw

    Ask Lasest Price
    Brand Name : ACEMIEN
    Model Number : ASM-01
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets per month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

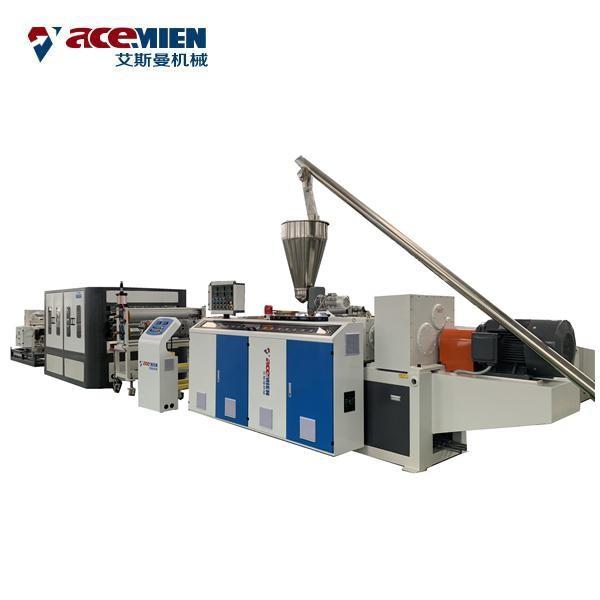

    Transparent Roof Tile Forming Machine PVC PP PET Customized Voltage 200 Kw

    PVC PP PET Transparent Roofing Sheet Tile Extrusion Machine

    SJ series conical twin screw extruder is specially adopted in the extrusion of PVC powder material, as well as PVC wood composite material. Equipped with different moulds and auxiliary units, it can be used to produce various specifications of PVC roof ,pipe , profile , decoration panel, bar section and granule.


    Barrel adopts cast aluminum heating rings for heating, and air blower system for cooling, which has the characteristics of equal heat transmission , convenient operation and maintenance ,etc.Screw core part adopts high-efficiency automatic circulation cooling system. Structure of screw can be customized according to different material formulation, in order to achieve best plasticizing effect.

    The gear is made up of 38CrMoALA alloy steel with nitriding treatment.


    Imported temperature controller for the controlling system, with accuracy ±1℃. Main motor adopts imported brand frequency controller or DC controller for speed control electrical system is equipped with multi-mal-function alarm device, as well as over-current protection.


    This product adopts the advanced foreign technology, and designed for corrosion resistance of plant and heavy acid area, it's a new generation of permanent roofing material.Surface material: weather ability resin, to keep the durability and resistance to chemical corrosion of product. Underlying material: white ductile material, to enhance the sense of space and brightness of house.High production efficiency, the structure is reasonable and compact, easy operation and maintenance.PVC glazed roof tile is widely used in pavilions, hotels, exhibition halls, resorts, families and other buildings. PVC glazed roof tile has a series of advantages: Weather resistance, Corrosion resistant performance, excellent load capacity, Shock resistant and low temperature resistant, Self clean and so on.This line is mainly used to produce PVC glazed tile which width is 720mm, 880mm, 1040mm,thickness is 2-3mm. (Other size can be customized).PVC, ASA, PMMA compound roof tile production line consists of conical twin screw extruder SJZ80/156, co-extruder, extruding tools, forming machine for main tile and ridge tiles, haul-off, cutter and stacker. Supply formula guide and staple raw material purchase.

    8. 1300mm Mould unitTechnical data

    Mold type: coat hanger runner, uniform discharge.

    Material: 5CrNiMo steel with heated ,surface polished , internal and external electroplated treatment, chromium layer thickness of mold head surface : 0.04-0.05mm.

    Heating way: heating rod, closed wiring

    Effective width :1300mm.

    Adjustment range: 1-4mm.

    Heating zones: 7zones

    Heating power: 3.5kw×7zones
