Product Description
PVC Corrugated and Composite Roof Tile Extruder is extruded with
mold and surface is treated with hot-stamping machine directly in
line or water transferring after extrusion, which makes a
mirror-like surface with strong feeling of smooth and shining
marble.

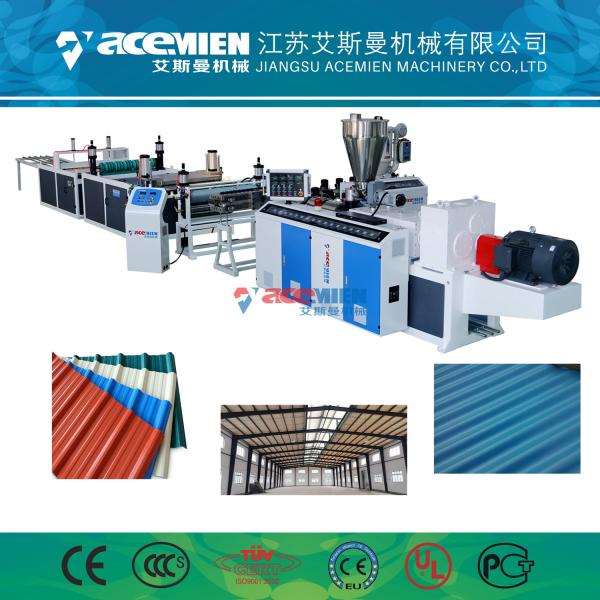

PVC Corrugated and Composite Roof Tile Production Line
Application and Characteristic:
1.This line is mainly used to produce PVC corrugated tile which
width is 1130mm,thickness is 1.5-3mm. (It can be customized)
2. PVC, ASA, PMMA compound roof tile production line consists of
conical twin screw extruder SJZ80/156, co-extruder, extruding
tools, forming machine for main tile and ridge tiles, haul-off,
cutter and stacker.
3. Supply formula guide and staple raw material purchase.
4. Professional analyzing and design by considering production cost
and tile's performance.
PVC+ASA/PMMP Coating Synthetic Resin Roofing Tile Advantages:
1.Save cost for your investment ,using life more than 20years
2. Excellent anti-load performance
3. Lightweight easy transportation
4. Excellent waterproofing performance ,water resistance when heavy
rains and the rainy season
5. Fire resistance, not spontaneous combustion and insulation
6. Anti corrosion: resistance to acid and alkali
7. Impact resistance and low temperature resistance
8. Good sound and heat insulation
9. Small thermal expansivity
10. Environmental protection and energy conservation
11. Easy to install and packing container and car
12. Lasting color more than 15 years
13. Green environment-friendly
Machine list
| No. | Machine | Qty. | |
| 1 | Screw loader for SJZ 80/156 extruder | 1set | Main tile extrusion line
Ridge tile forming |
| 2 | SJZ 80/156 conical twin-screw extruder(PVC) | 1set |
| 3 | Vacuum loader and drying hopper | 1set |
| 4 | SJ50/30 single screw extruder(ASA) | 1set |
| 5 | Extrusion mould and distributor | 1set |
| 6 | Calibration mould and trimming device | 1set |
| 7 | Haul off unit | 1set |
| 8 | Cutter | 1set |
| 9 | Stacker | 1set |
| 10 | Ridge tile Oven | 1set |
| 11 | Ridge tile Forming machine | 1set |
| 12 | Screw loader for SRL-Z300/600 Mixer | 1set | Auxiliary equipment |
| 13 | SRL-Z300/600 Mixer unit | 1set |
| 14 | PC500 Crusher | 1set |
| 15 | MF550 Pulverizer | 1set |
| 16 | Ridge roof forming machine(Optional)
1. Flat sheet haul-off unit
2. Oven
3. Ridge tile forming unit
4. Ridge tile mold | | |
Raw material
| Raw material & formulation | PVC powder, CaCO3, CPE, PE-WAX, Stearic acid , Compound stabilizer
,ACR, paraffin
ASA granule |
| Description final product & Output capacity | Two layer PVC+ASA Co-extrusion Corrugated tile(trapezoid);
Width:1130mm,Thickness: 1.5~3mm;
Output:300-400kg/h(Depending on CaCO3 proportion)
For 2.5mm thickness, Capacity about 2300 Sqr/day |
Work condition (provide by customer)
| Warehouse/Workshop | Dimension (M*M*M): 25(Length)×5(width) ×3.5 (Height)
Crane: Machine positioning |
| Temperature & Humidity | ≤40℃, ≤95% |
| Power supply | 3-phase, 380 V, 50 Hz(or customized) |
| Wire/cables: | Wires/cables from power supply to control cabinet of this
production line; |
| Cooling Water hose/pipe | Water supply to machines and pools |
| Lubrication oil: | Sinopec, Exxon mobile |
| Compressor | 7.5kw(0.6-0.8Mpa) |
Energy consumption
| Installation power | Total 270KW,Actual consumption about 70%
Suggested 200KVA transformer
Needing at least 150KVA transformer |
| Cooling Water | ≤20℃, ≥0.3Mpa, ～5-6tons/hr |
| Compressed air | 0.3m3/min, ＞0.6Mpa |
| Manpower | 3 Persons/shift(24 hours need 2-3 shifts) |
