    Plastic Recycling Wood Plastic Composite Production Line PVC Wood Sheet Mould Die Extrusion

    Ask Lasest Price
    Brand Name : Acemien
    Model Number : SJZ180
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 200set/year
    Delivery Time : 45working days
    • Product Details
    • Company Profile

    Plastic Recycling Wood Plastic Composite Production Line PVC Wood Sheet Mould Die Extrusion

    Plastic Recycling WPC Profile Machine pvc wood sheet mould die extrusion production line


    Competitive Advantage:


    The main extrusion machine adopts special-designed screw, barrel, mould. Equipped with the auxiliary machinery, it could produce the PP ,PE ,PVC, Wood-Plastic products. It's a new environment-protecting product, which combines the wood powder and plastic powder at a certain percent. After the high temperature and mould extruding, the wood and plastic composites and becomes the final products.

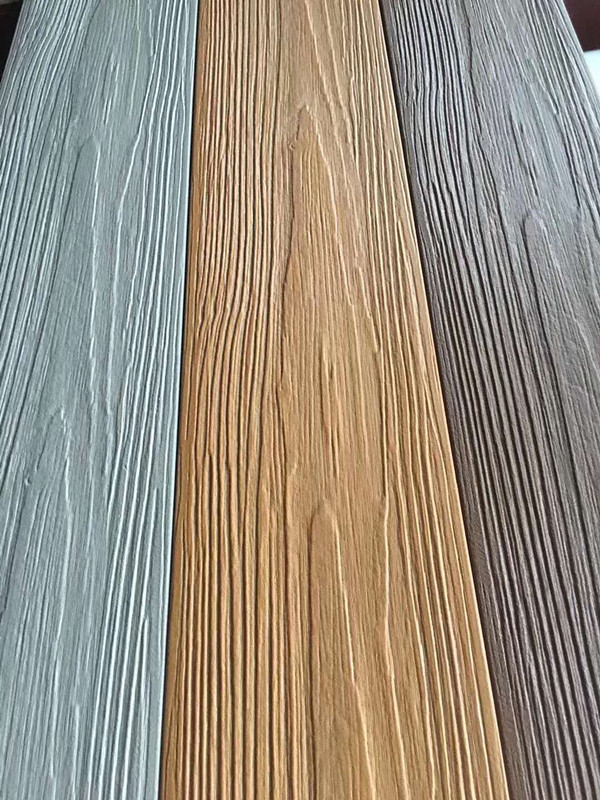

    This WPC profile extrusion machine can produce WPC PE PP PVC decking , out-door flooring, fencing, railing, Pillar etc products.

    1) high production efficiency;
    2) reasonable structure compact;
    3) convenient operation and maintenance;
    4) long use life etc.


    Applications:

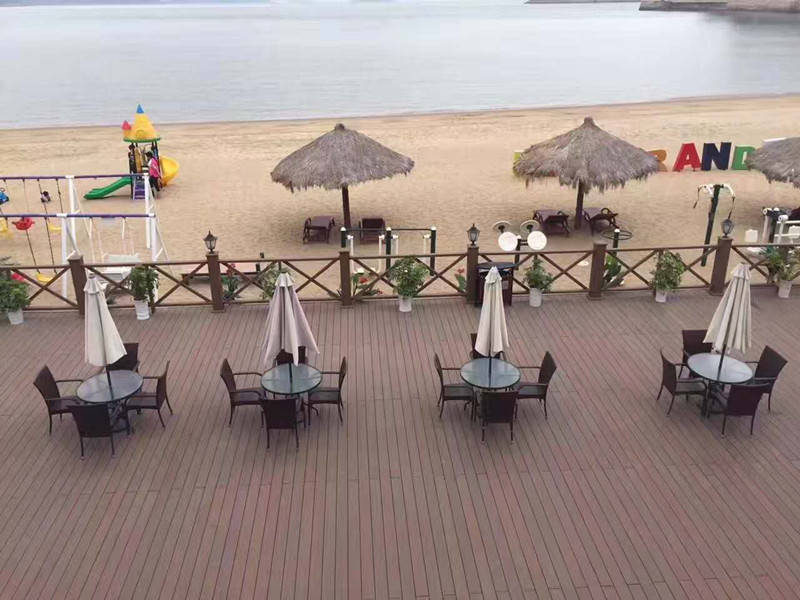

    The WPC outdoor profile is mainly used in the production of wood-plastic profile,which is widely used in civilian industry, such as decoration wall, inner door floor and outer door application, hotel, resort etc.


    WPC extrusion line model

    Extrusion LineSJZ 65/132SJZ 80/156SJZ 92/188
    L/D Ratio22/2522/2522/25
    Output(kg/h)200-240250-350400-500
    Main motor power(kw)3755110
    Heating Power4 zones, 20kw5 zones, 38kw6 zones, 54kw
    Compressed air(MPa)0.60.60.6

    pvc wood sheet mould die extrusion line

    Product Name
    pvc extrusion mould
    Material
    steel 3Cr17 or DIN1.2316
    Including Parts
    Die, Calibrator, Water Tank
    Speed
    2.5M per minute
    Polish Grade
    Ra 0.18
    Tolerance
    0.2mm
    Hardness
    HRC30+/-2

    FAQ
    1. Q: Are you manufacture factory or a trader?

    A: We are an industrial manufacture factory of plastic extrusion machinery for years, which locates in Zhangjiagang city, China.



    2.Q: What's your payment term:


    A: T/T 30% in advance & T/T 70% upon sending the copy of Bill of Lading, L/C 100%, or negotiate according to the order status.



    3.Q: Can we visit your factory ?


    A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case



    4. Q: How do you make the quotation for clients?


    A: The price depends on quality and performance but the clients should be satisfied first.



    5.Q: Do you have any after-sale service ?

    A: Yes,we have professional after-sale teamwork . any technical question could be solved in 24 hours by our after-sale teamwork.



    6. Q: How do you install your equipment in our factory ?

    A: We have professional after-sale &installation teamwork, we will arrange our engineer fly to ur factory install and teach ur labor .
