    Water Ring Cutting Plastic Film Agglomerator Granulator Woven Plastic Bag

    Ask Lasest Price
    Brand Name : ACEMIEN
    Model Number : ASM-01
    Certification : CE ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets per month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Water Ring Cutting Plastic Film Agglomerator Granulator Woven Plastic Bag

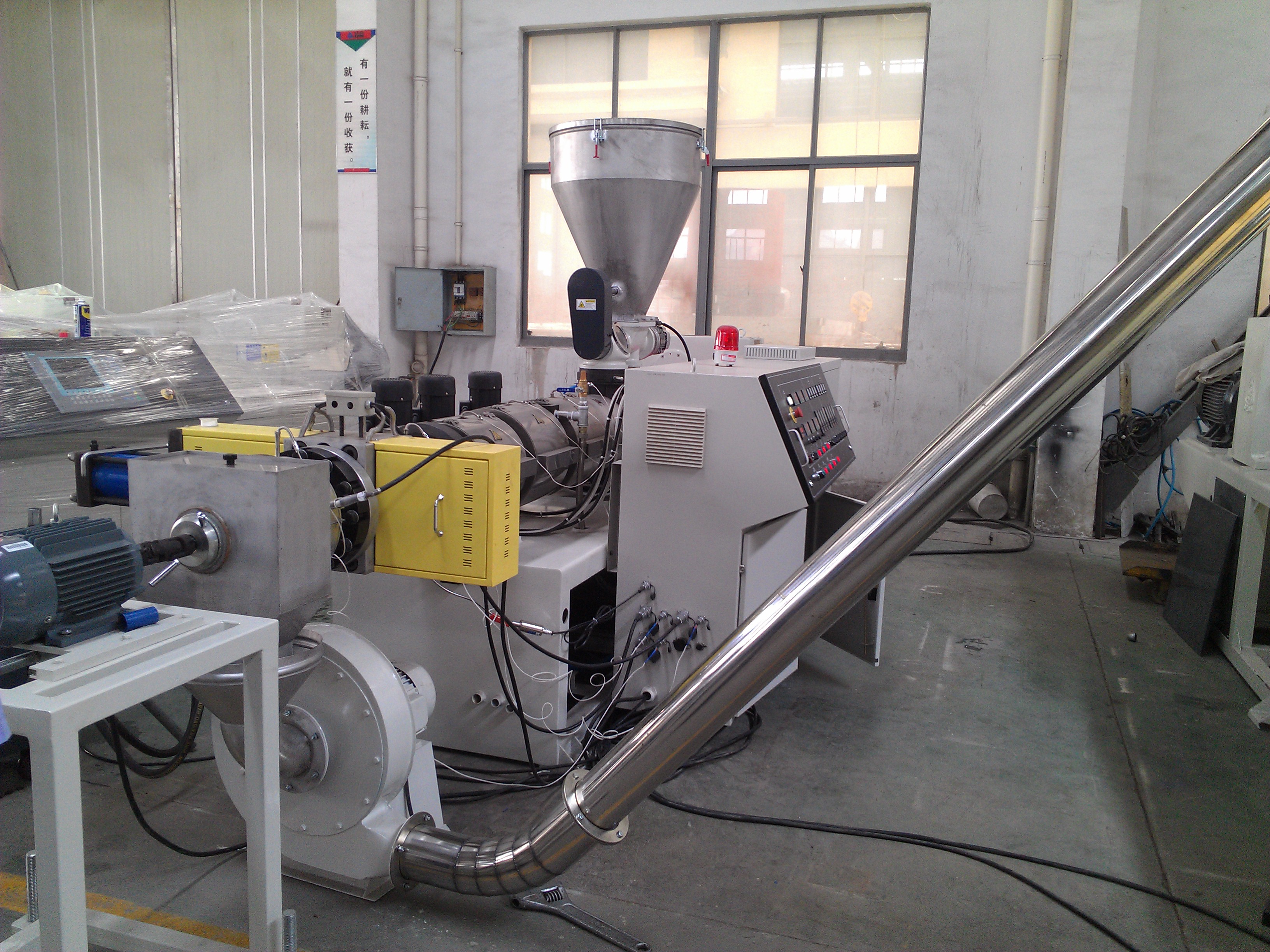

    Water Ring Cutting Granulator PE film PP Woven Bag Plastic Bag Agglomerator Pelletizing Machine

    This equipment is matched with the crushing and cleaning machine and the pelletizer. Broken and cleaned plastic, no need to cool, dry, directly into the machine for extrusion granulation, simple process, advanced technology, and suitable for different waste plastics. It adopts automatic temperature control and electric (coal) heating, with less electricity, no pollution, high degree of automation, full tracking of hydraulic system, and automatic network change without stopping. The complete set of equipment consists of the main machine (with hydraulic system, automatic head), crushing and cleaning machine, pelletizer, initial washing tank (can be made), cooling tank (can be made), the complete set of equipment, automatic continuous production, due to equipment Special exhaust and drainage device, so the waste can be directly granulated after washing, and the material is clean, free from pollution and aging, which greatly reduces production costs and improves production efficiency. The whole machine has the remarkable features of small volume, high efficiency, good performance, low power consumption, high quality of finished products and wide adaptability, and can be adapted to meet various processing requirements of waste plastics.


    MachineTechnical specifications
    SJ120/33 single screw extruder

    Screw :

    Diameter of screw: 120mm, L/D: 33/1

    Material of screw: 38CrMoAlA

    Surface treatment: Nitriding processing, thickness: 0.4 ~ 0.7mm, Polishing

    Max. rotating speed: 105rpm

    Barrel:

    Material of barrel: 38CrMoAlA

    Inner processing: Nitrided with thickness: 0.4 ~ 0.7mm

    Heating zones:6

    Heating power: About 57KW

    Heater: Cast Aluminum+ stainless steel covering

    Cooling mode: Air fans: 0.37KW X 6 = 2.22KW

    Driving motor:

    Motor power: AC132KW

    Venting system:

    Vacuum pump motor power: 2.2KW X 1

    Electric cabinet :

    Speed regulator: Parker

    Contactor: Schneider

    Air Switch: Schneider

    Relay: Schneider

    Temperature controller: Omron

    Self protective system:

    Over current protective of motor

    Over pressure protective of screw.
