    PVC Plastic Roof Tile Machine , Roof Tiles Making Machine PMMA ASA Coating Layer

    Ask Lasest Price
    Brand Name : ACEMIEN
    Model Number : ASM-01
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets per month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    PVC Plastic Roof Tile Machine , Roof Tiles Making Machine PMMA ASA Coating Layer

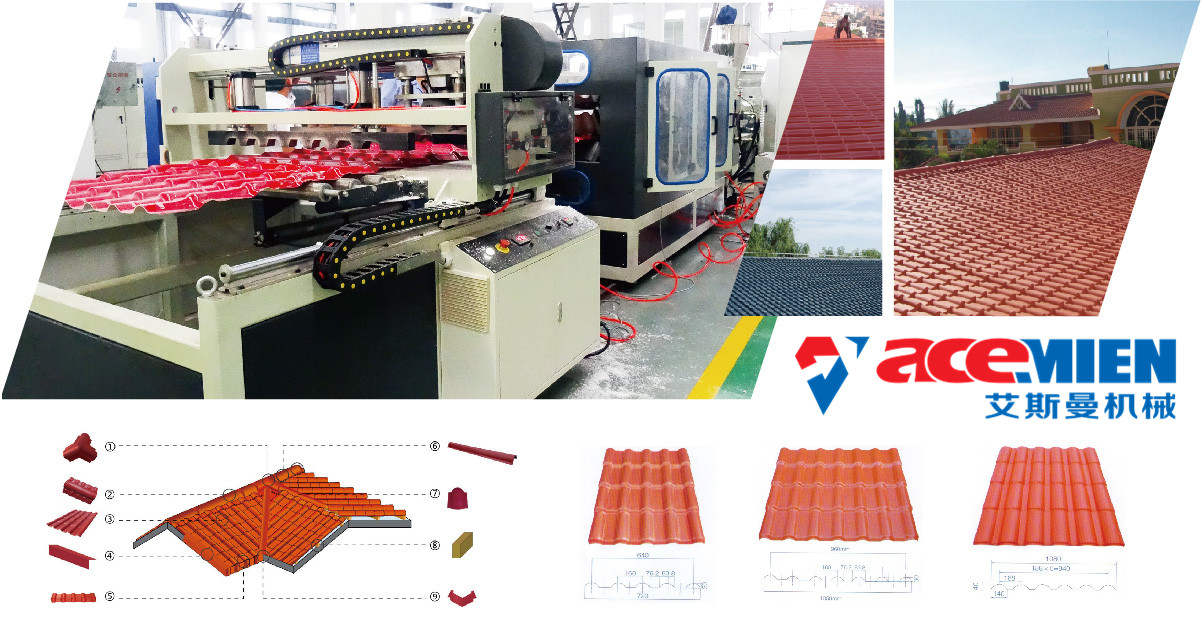

    PVC Roofing Sheet Making Machine with PMMA/ASA Coating Layer​


    Our company concentrate on five series equipment, they are Synthetic resin tile and PVC corrugated tile extrusion equipment; Artificial marble sheet and profile extrusion equipment; Post recycling and granulation equipment; Conventional extrusion equipment such as pipe/profile/sheet ;Auxiliary equipment such as mixer/crusher/pulverizer.


    This product adopts the advanced foreign technology, and designed for corrosion resistance of plant and heavy acid area, it's a new generation of permanent roofing material.Surface material: weather ability resin, to keep the durability and resistance to chemical corrosion of product. Underlying material: white ductile material, to enhance the sense of space and brightness of house.


    4.SJZ 51/105 conical twin-screw extruderTechnical data

    Screw

    Barrel

    Driving motor

    Feeding system

    Vacuum system

    Adaptor

    Main electric cabinet

    Self-protective system

    Screw:

    Diameter conical 51/105 mm

    Material of screw: 38CrMoAl

    Surface treatment: Nitrided processing, thickness: 0.5 ~ 0,7mm, Hardness:740-940HV,

    Surface coarseness Ra≤0.8µm

    Rotating speed (counter rotating): 1-34.7 rpm/min

    Barrel:

    Inner processing: Nitrided with thickness: 0.6 ~ 0.7mm

    Hardness:940-1100HV,

    Inner wall coarseness: Ra≤1.6µm

    Heating zones: 4

    Heating mode: Cast aluminum + stainless steel covering

    Heating power: 11.5 KW

    Cooling mode: Air fans: 0.55KWx3 zones

    Gear box:

    Gear material: 20CrMnTi + Surface thermal treatment.

    Distributor materials: 38CrMoAlA Nitrided treated

    Designed for high torque, long life span and low noise operation.

    Driving motor:

    Motor power: 18.5 KW(SIEMENS)

    Type of motor = AC

    Feeding system:

    Motor:1.1Kw

    Double screw forced feeding

    With stainless steel hopper

    Feeding sleeve with circular water cooling

    Adaptor: (Interflow Section):

    Material: #40steel Chrome plated, inner convergent flow type

    Connection method with die: flange + bolt

    Pressure melt sensor and thermocouple


    Main electric part supplier :

    Inverter: ABB

    Contactor: Schneider

    Air Switch: LS

    Temperature controller: Omron

    Self protective system:

    Over current protective of motor

    Over pressure protective of screw.
