Wholesale PVC Corrugate Roofing Sheet Tile Forming Extruder Making
Machine
Plastic roof tile Advantages:
1.Excellent anti-load performance.Save cost for your investment ,using life more than 20years.Lightweight easy transportation, easy to install, packing and transport
2.Fire resistance, not spontaneous combustion and insulation.Excellent waterproofing performance ,water resistance when heavy
rains and the rainy season.Impact resistance and low temperature
resistance.
3. Anti corrosion: resistance to acid and alkali.Good sound and
heat protection.Small thermal expansivity
4. Environmental protection and energy conservation. It can be
resused. So, the advantage is green environment-friendly
This structure fully sealed with screw head, so solve the problem
of the corrosion of screw, the aging of waterproof apron, the
leakage of screw hole; There is water-proof apron below than can
prevent the infiltration of surface water from screw hole. The
increase of screw fixed position can against typhoon. Three
prevent: the prevent of edge waves, dark through, screw holes.PVC

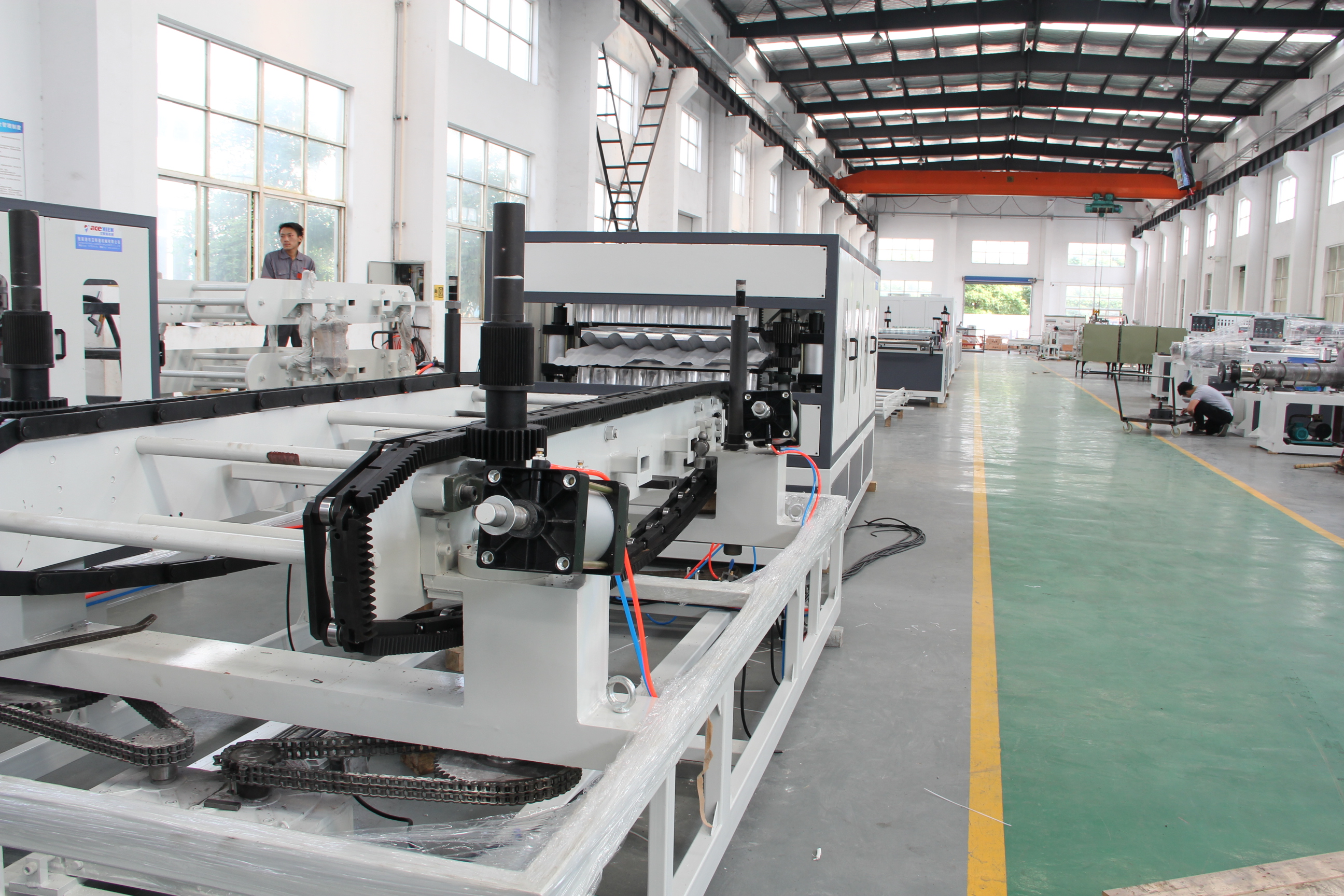

glazed tile extrusion line consists of premixing units, conical
extruder, co-extruder, T-die mold, calibration device, embossing
rollers, saw cutter, hauling set, etc. Process is: premixing the
PVC resin with fillers, additives, then extrude the mixed PVC
materials together with ASA/PMMA co-extruding, to T-die molding;
after calibration, embossing, cutting, to make the final PVC tile.
Two resistance: screw heads, waterproof apron keep from air and
rain, so it's permanent and durable.One anti: this corrugated tile
can against 10 grade typhoon.The structure and character of PVC
Anti-corrosion complex corrugated sheet. With the special
accessories, the plastic roof tile can enhance three grades of
waterproof, wind and corrosion resistance.This line consists of
single screw extruder, hanger-style flat die, size forming mould,
high--efficiency, vacuum pump, hauling--off unit, pneumatic cutter
and other auxiliary equipments.The corrugated sheet extrusion line consists of single screw
extruder, corrugation forming machine.PVC glazed tile is a type of
asbestos-free composited sheet, extruded based on PVC resin,
co-extruded with ASA, PMMA engineering plastic.
Work condition (provide by customer)
| Warehouse/Workshop | Dimension (M*M*M): 25(Length)×5(width) ×3.5 (Height)
Crane: Machine positioning |
| Temperature & Humidity | ≤40℃, ≤95% |
| Power supply | 3-phase, 380 V, 50 Hz(or customized) |
| Wire/cables: | Wires/cables from power supply to control cabinet of this
production line; |
| Cooling Water hose/pipe | Water supply to machines and pools |
| Lubrication oil: | Sinopec, Exxon mobile |
| Compressor | 7.5KW(0.6-0.8Mpa) |
Machine list
| No. | Machine | Qty. | Remark |
| 1 | Screw loader for SJZ 80/156 extruder | 1set | Glazed tile extrusion line
Ridge tile forming |
| 2 | SJZ 80/156 conical twin-screw extruder(PVC) | 1set |
| 3 | Vacuum loader and drying hopper | 1set |
| 4 | SJ50/30 single screw extruder(ASA) | 1set |
| 5 | Extrusion mould / distributor | 1set/1set |
| 6 | Embossing roller | 1set |
| 7 | Glazed-tile forming machine | 1set |
| 8 | Cutter | 1set |
| 9 | Stacker | 1set |
| 10 | Ridge tile Oven | 1set |
| 11 | Ridge tile Forming machine and mould | 4set |
| 12 | Screw loader for SRL-Z300/600 Mixer | 1set | Auxiliary equipment |
| 13 | SRL-Z300/600 Mixer unit | 1set |
| 14 | PC500 Crusher | 1set |
| 15 | MF550 Pulverizer | 1set |
| 16 | Ridge roof forming machine(Optional)
1. Flat sheet haul-off unit
2. Oven
3. Ridge tile forming unit
4. ridge tile mold (4sets) |
Turnkey project service:
1. we will provide all the machines for the complete production
according to customer's requirements and complete service for
factory layout and other information to help customer to build the
factory.
2. we can also provide the raw material to the customer if you
need.we will provide good service for machine installation and
training, until the customers can run the machines and make stably
production.
3. Except one year quality guarantee, we will provide after-sell
service for all the life.For long-term cooperation, we always
provide good quality, good price and good service to customer. we
are the professional and trustable supplier for turnkey projects.
Let us do win-win business together.
