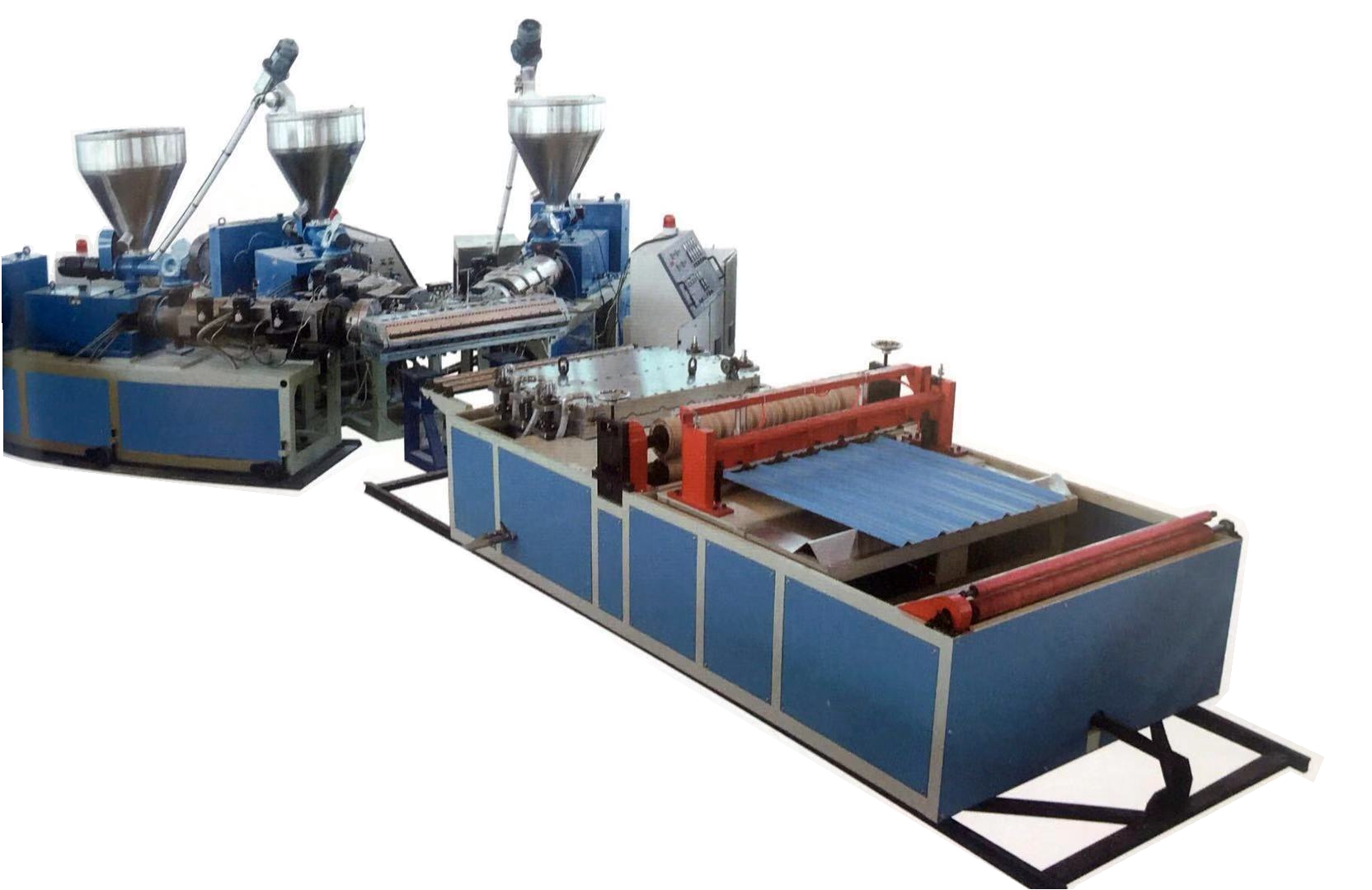

PVC Plastic Twin-Wall Two Layer Roof Tile Making Machinery
Advantage:
1. This twin-wall hollow roofing sheet is better for heat and sound
resistency.
2. It is suitable for tropical weather, with advantages of
anti-corrosion, rustproof, strong durability.
3. Beautiful appearance, easy and fast installation.
4. High temperature resistance to 140 degrees without deformation,
poor tile made of PVC, 30 degrees on the deformation, easy to bend,
cause rupture
5. Low temperature resistance up to -40 degrees, no opening, as
long as the screw hole will not break
6. Flame retardant, leaving the source of fire and extinguishing.
The United Nations pavilion at the Shanghai world expo will benefit
from the plate
7. Light weight, easy to bend, easy to install. Yiwu trade city
with a lot of the hollow sunshine tile, save a lot of manpower,
material resources, financial resources, effectively reduce the
cost
8. Environmental protection, non-toxic, green building materials.
9. Impact resistance, 250 times stronger than glass.
Application:
Twin-wall hollow roofing sheet is widely used in the
factories(including chemical and treatment plants),sports stadium,
school, agricultural industry, marine. products, warehouse,
commercial building.
Hollow solar tile hollow wave tile hollow tile, the specification
of the solar tile is 840 type 5 waves, the middle distance of every
two waves is 210 mm, and 900 type 9 waves, the middle distance of
every two waves is 112 mm, divided into wave type and buckle type
Machine list
| No. | Machine | Qty. |
| 1 | Screw loader for SJZ 80/156 extruder | 1set |
| 2 | SJZ 80/156 conical twin-screw extruder(PVC) | 1set |
| 3 | Vacuum loader and drying hopper | 1set |
| 4 | SJ50/30 single screw extruder(ASA) | 1set |
| 5 | Extrusion mould and distributor | 1set |
| 6 | Forming table | 1set |
| 7 | Haul off unit | 1set |
| 8 | Cutter | 1set |
| 9 | Stacker | 1set |
| 10 | Screw loader for Mixer | 2sets |
| 11 | SRL-Z300/600 Mixer unit | 2set |
| 12 | Crusher | 1set |
| 13 | Pulverizer | 1set |
Project evaluation
Raw material & Final product:
| Raw material & formulation | PVC powder, CaCO3, CPE, PE-WAX, Stearic acid , Compound stabilizer
,ACR, paraffin,ASA granule |
| Description final product | Two-layers Hollow Corrugated PVC Roof Tile Width:760-1340mm or custormized Thickness: 1.5-4mm normally |
| Output capacity | Output:350-400kg/h(Depending on CaCO3 proportion) |
Work condition (provide by customer)
| Warehouse/Workshop | Dimension (M*M*M): 25(Length)×5(width) ×3.5 (Height) Crane: Machine positioning |
| Temperature & Humidity | ≤40℃, ≤95% |
| Power supply | 3-phase, 380 V, 50 Hz(or customized) |
| Wire/cables: | Wires/cables from power supply to control cabinet of this
production line; |
| Cooling Water hose/pipe | Water supply to machines and pools |
| Lubrication oil: | Sinopec, Exxon mobile |
| Compressor | 7.5kw(0.6-0.8Mpa) |
Energy consumption
| Installation power | Suggested 250KVA transformer |
| Cooling Water | ≤20℃, ≥0.3Mpa, ～5-6tons/hr |
| Compressed air | 0.3m3/min, ＞0.6Mpa |
| Manpower | 3 Persons/shift (24 hours need 2 shifts) |
