Plastic PVC Wall Panel Extrusion Mould Plastic ceiling panel making
machinery
1, If change certain screw and mould, the pvc profile machine can
directly extrude foaming profiles, and the effect is much better
than that of single-screw.
2, pvc profile extrusion line is optimumly designed by referring to
the latest overseas technology, it bears the features of even plasticization, low cutting rate,
high output, and long lifespan, etc. And it composes conical double-screw extruder, vacuum sizing
platform, tractor, cutting and film coating machine and material
stirring bracket,etc.
3, The pvc profile machine is run by alternating current frequency
controller or direct current controllable silicon. The temperature
controlling instrument is introduced from abroad. In addition, the
vacuum pump and traction engine of the auxiliary machines are
quality products which can be maintained easily
4, To match with different moulds, the shape-fixing platform of 4m,
6m, 8m or 11m, etc. can be chosen accordingly. The main machine
with parallel double-screw is especially suitable for high-speed
extrusion of various kinds of profiles.
Components of Plastic PVC Ceiling Wall Panel/ Board Profile
Extrusion Machine

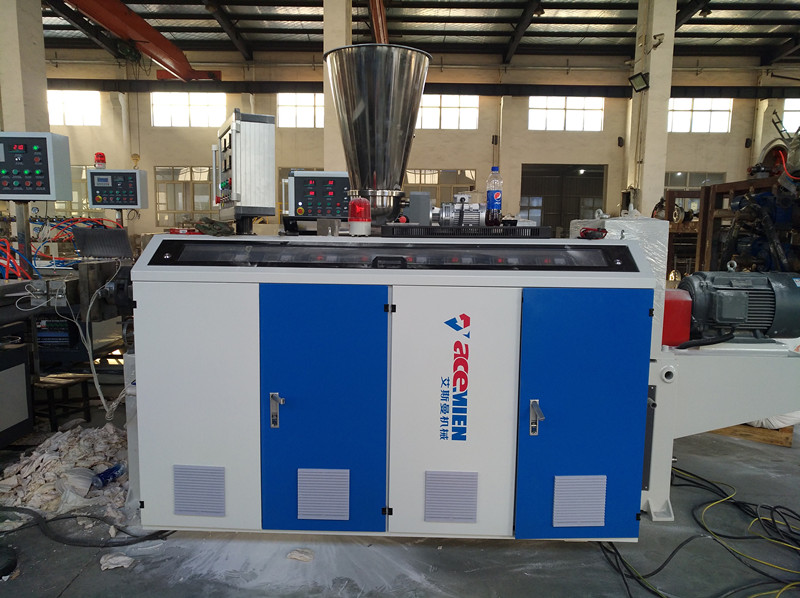

a. Conical twin screw extruder:
Using the high efficient conical twin screws, specially designed
for PVC power to ensure uniformed plasticization, high extrusion.
Stable temperature controlling system can guarantee high quality
pipe extrusion.
b. Extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the
thermal decomposition of amorphous plastics and get high quality
PVC profiles. There is heating control system inside of the mould,
high efficient, easy to extrude. Bronze calibrators can make the
PVC profiles fast calibrated and cooled.
c. Spraying and cooling table of Plastic PVC Ceiling Wall Panel/
Board Profile Extrusion Machine:
Rapid vacuum calibrating system allows the hot extruded PVC
profiles to be cooled in a very short time and obtain the final
size. Automatic temperature control system, pressure regulator, and
vacuum control valve greatly enhance the sizing and cooling
performance as well as the production speed.
d. Haul off machine:
Adopts caterpillar type suitable for different sizes of pipes. Haul
off caterpillar blocks are made of abrasion resistant rubber
material, which can make a high and stable hauling speed.
e. Cutting machine:
Precision machine cutter is able to make flat, straight cuts at
high speed. A powerful suction device gathers up waste scraps after
cutting, thereby making it easier for users to clean the cutter.
6. Stacking:
Automatic stacking with fixed length
| Model | Max wide(mm) | Extruder model | Max output(kg/h) | Drive motor power(kw) |
| SJZ108 | 108 | SJZ51/105 | 100 | 18.5 |
| SJZ180 | 180 | SJZ51/105 | 100/150 | 18.5/22 |
| SJZ240 | 240 | SJZ65/132 or SJZ55/110 | 250 | 37 |
| SJZ300 | 300 | SJZ65/132 | 250 | 37 |
| SJZ400 | 400 | SJZ80/156 | 350 | 55 |
| SJZ500 | 500 | SJZ80/156 | 350 | 55 |
| SJZ600 | 600 | SJZ80/156 | 400 | 75 |
| Products | PVC ceiling, PVC panel, PVC wall panel |
| Specification | Proof | Light in weight and easy installation |
| Unit price | US1.50~US4.00 |
| Caco3 Ratio | 30-200% |
| Width | 10cm/16cm/18cm/20cm/25cm/30cm/60cm |
| Length | 5.8m/5.95m/as customers' requirements |
| Thickness | 6mm/7mm/7.5mm/8mm/9mm/10mm/11mm/12mm |
| Weight | 1.85kg-3.3kg |
| Surface | Printing, hot-stamping, pearlite printing, peritoneal, normal
glossy, high glossy |
| Colors | Varied colors to you choose |
| Features | (1)High shrink surface, smooth without gap when concatenated |
| (2)Fireproof, moisture-proof, mould-proof, waterproof, soundproof,
sound-absorbing, light in weight and easy installation |
| (3)For ceiling and wall decoration |
| (4)The variety of colors and patterns |
| Type | Flat surface or middle groove |
