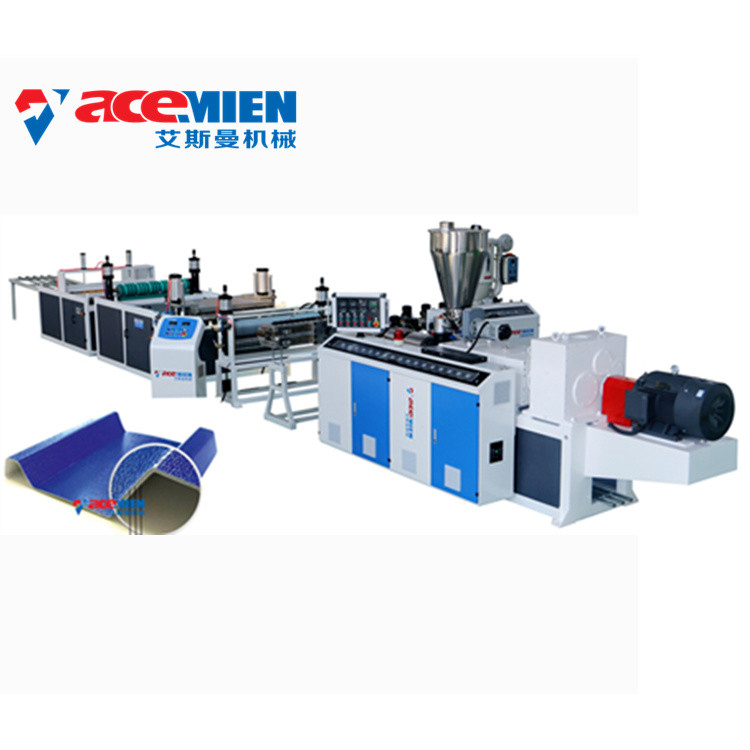

High efficiency Recycled PVC+ASA glazed roof tile machine
PVC+ASAGlazed Roof Tile machine is extrued with mold and surface is
treated with hot-stamping machine directly in line or water
transferring after extrusion, which makes a mirror-like surface
with strong feeling of smooth and shining marble.
The machine has conical twin-screw main engine, co-extruder, surface embossing machine, debuggable distributor, hanger flat die, two-roll roller press, glazed tile molding machine, tracking cutting machine, receiving frame composition, can continuously produce pvc
single-layer and PVC/ASA composite plastic glazed tile.
The whole line has the advantages of high production efficiency,
reasonable and compact structure, convenient use and maintenance,
long life and so on. The products are rich in color, beautiful in
shape, strong in three-dimensional sense, cheap in quality, green
and environmentally friendly, easy to install, and it also has the
advantages of light tenacity, sound insulation, waterproof and
corrosion resistance, aseismic and anti-fouling, fire insulation
and so on. It can be widely used in garden factories, tourist
scenic spots, pavilions, hotel villas, exhibition halls, resorts,
families and other buildings, and is an ideal roof decoration
material.
| Raw material & formulation | Bottom layer: PVC powder, CaCO3, CPE, PE-WAX, Stearic acid, Compound stabilizer,
ACR, paraffin.
Surface layer: ASA granule |
| Description final product Output | Two layers PVC+ASA Co-extrusion Glazed tile
Output 300-400kg/h(Depending on CaCO3 proportion) |
| Description final product | Glazed tile:
Width:880mm;1040mm Thickness: 1.5~3mm;
Main tile:1set
Ridge tile:4sets
Corrugated tile:
Width:920mm;1130mm Thickness: 1.5~3mm;
Main tile:1set
Ridge tile:1set
Wave distance 160mm Wave height:28/30mm,
Wave length 220/250mm
All kinds of ridges,customers can choose. |
| Main Machine List |
| No. | Name | Qty. | Remark |
| 1 | Screw loader for SJZ 80/156 extruder | 1 | |
| 2 | SJZ 80/156 conical twin-screw extruder | 1 | For the PVC layer |
| 3 | Vacuum loader for SJ50 extruder | 1 | |
| 4 | drying hopper for SJ50 extruder | 1 | |
| 5 | SJ50/30 single screw extruder(ASA) | 1 | For the ASA layer |
| 6 | 1300mm Mould unit | 1 | Product width:1050mm |
| 7 | Distributor | 1 | |
| 8 | Cutter | 1 | |
| 9 | Stacker | 1 | |
| Equipment for corrugated roof tile |
| 10 | 1050mm Calibration mould with trimming device and haul off unit | 1 |
For corrugated roof tile product |
| 11 | Moulds of top ridge tile with forming machine | 1 |
| Equipment for Spanish roof tile |
| 12 | Embossing roller | 1 |
For Spanish roof tile product |
| 13 | 1050mm Forming machine with trimming device | 1 |
| 14 | Moulds of top ridge tile ,hip ridge tile , three way and end ridge
tile with forming machine | 4 |
| Auxiliary equipment |
| 15 | Ridge tile Oven | 1 | |
| 16 | SRL-Z300/600 Mixer unit | 1 | Capacity : 450-550kg/h |
| 17 | Screw loader for SRL-Z 300/600 Mixer | 1 | |
| 18 | Crusher | 1 | Power: 11kw |
| 19 | Pulverizer | 1 | Power: 45kw |
